# General Workflow in Flow360 GUI

This document outlines the systematic approach to setting up and running CFD simulations using the Flow360 graphical user interface.

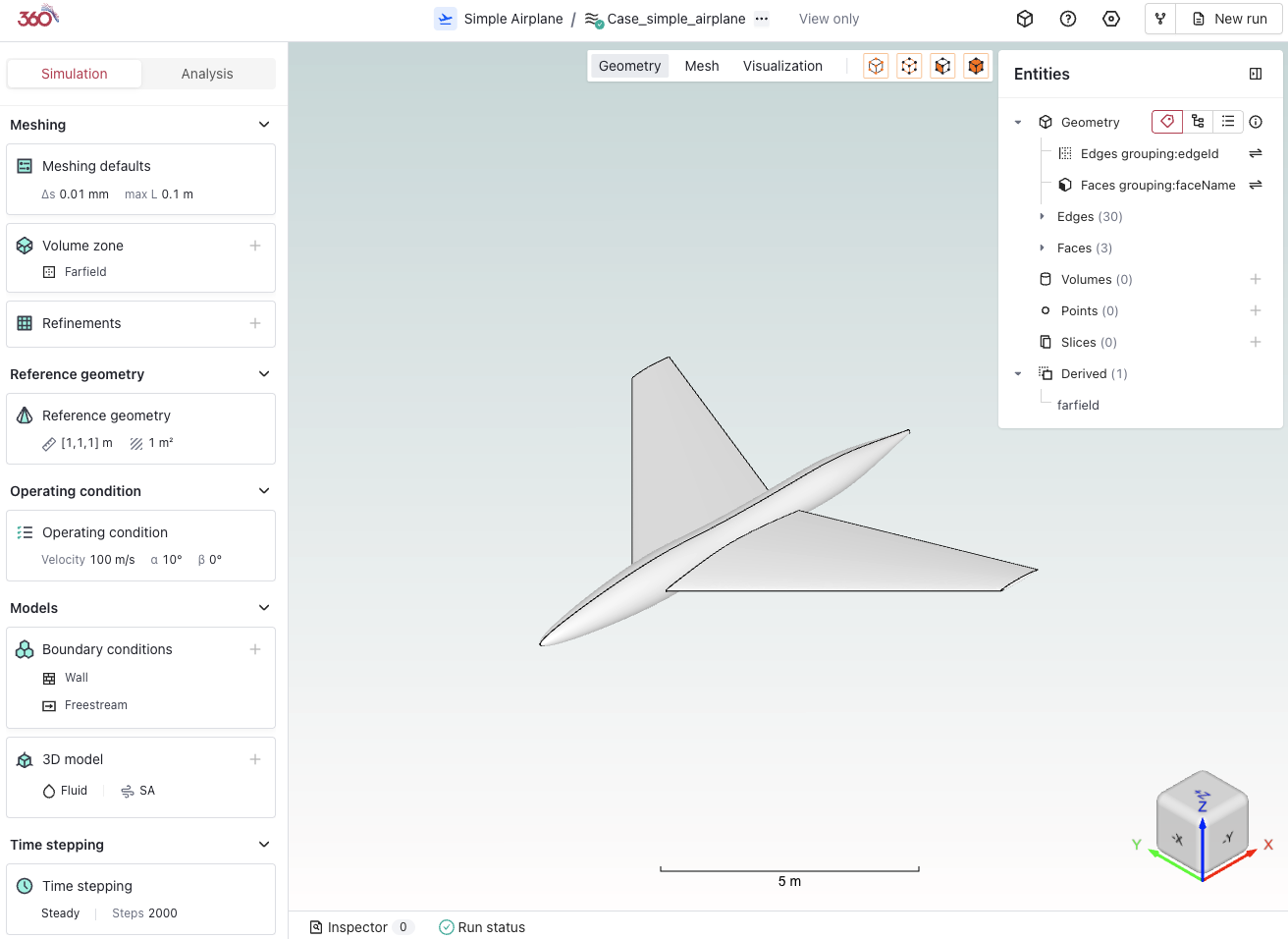

# 🛠️ Workbench view

workbench

For workbench layout, refer to this page.

# 📋 Primary Workflow Steps

Step Description Location
Setup Configure simulation parameters Simulation tab
Verify Verify setup using inspector Bottom status bar
Run Initiate simulation run Top-right corner
Monitor Track simulation progress Analysis tab
Visualize View results Central viewer region

# 🔍 Detailed Descriptions

# Setup

Configure simulation parameters in a top-to-bottom sequence through the left sidebar.

  • Required Steps:
    • Meshing configuration (if starting from geometry)
    • Reference geometry definition
    • Operating conditions
    • Models selection
    • Time stepping parameters
    • Output settings
  • Notes: Parameters are organized in collapsible sections for clarity

# Verify

Verify simulation setup completeness using the inspector tool.

  • Location: Bottom status bar
  • Success Indicator: Inspector showing 0 errors
  • Notes: Address any warnings or errors before proceeding

# Run

Initiate the simulation process including surface and volume meshing.

  • Location: Top-right corner "Run" button
  • Scope: Complete workflow from geometry to solution
  • Notes: Automated meshing is included when starting from geometry

# Monitor

Track simulation progress and analyze numerical results.

  • Access: "Analysis" tab adjacent to "Simulation"
  • Features: Real-time convergence monitoring
  • Notes: Multiple visualization options available

# Visualize

Inspect mesh and results using the central viewer.

  • Controls: Viewer bar for mode selection
  • Options: Geometry, mesh, and solution visualization
  • Notes: Interactive 3D viewport with customizable display settings

💡 Tips
  • Complete setup sections sequentially from top to bottom
  • Use the Entities bar on the right for detailed model inspection
  • Save work periodically during setup
  • Verify all required fields before execution
  • Monitor convergence through the Analysis tab

❓ Frequently Asked Questions

  • What happens if the inspector shows errors?

    The simulation cannot be executed until all errors are resolved. Address each error in the setup.

  • Can I modify parameters during simulation?

    Most parameters cannot be modified during active simulation. Stop the simulation to make changes.

  • How do I track simulation progress?

    Use the Analysis tab to monitor convergence and the bottom status bar for overall progress.

  • Where can I find detailed mesh statistics?

    Access mesh details through the Entities browser and mesh visualization options in the central viewer.
