# Keyboard Shortcuts
Keyboard shortcuts in Flow360 WebUI provide quick access to frequently used actions, improving workflow efficiency and reducing reliance on mouse navigation.
Note: On macOS,
Ctrlis replaced withCommand(Cmd) for all shortcuts.
# Selection
Shortcuts for selecting items in the Flow360 Workbench.
| Action | Windows / Linux | macOS | Description |
|---|---|---|---|
| Single selection | Click | Click | Select a single item |
| Multiple selection | Ctrl + Click | Cmd + Click | Add or remove items from selection |
| Box selection | Shift + Drag (rectangle) | Shift + Drag (rectangle) | Select multiple items by dragging a selection box |
| Continue to add/remove selections | Ctrl + Shift + Drag (rectangle) | Cmd + Shift + Drag (rectangle) | Modify existing selection by dragging a box |
| Clear selection | ESC | ESC | Deselect all currently selected items |
# View
Shortcuts for navigating and controlling the 3D viewer.
| Action | Windows / Linux | macOS | Description |
|---|---|---|---|
| Move (Pan) | Right Mouse Button + Drag | Right Mouse Button + Drag | Pan the view by holding right mouse button and dragging |
| Rotate | Left Mouse Button + Drag | Left Mouse Button + Drag | Rotate the view by holding left mouse button and dragging |
| Zoom in | Mouse Wheel (scroll up) | Mouse Wheel (scroll up) | Zoom in by scrolling mouse wheel forward |
| Zoom out | Mouse Wheel (scroll down) | Mouse Wheel (scroll down) | Zoom out by scrolling mouse wheel backward |
| Fit view | Right click + select from menu | Right click + select from menu | Fit entire model to viewport |
| Fit selected | Right click + select from menu | Right click + select from menu | Fit selected items to viewport |
| Reset view | Right click + select from menu | Right click + select from menu | Reset camera to default view |
# Project Tree
Shortcuts for interacting with the project tree hierarchy.
# Context Menu Shortcuts
Shortcuts for performing actions from the project tree context menu. Only applies to the first four actions in the menu illustrated below.
| Action | Windows / Linux | macOS | Description |
|---|---|---|---|
| Open in new tab | Ctrl + Left Click | Cmd + Left Click | Open actions in a new tab |
| Open in current tab | Left Click | Left Click | Standard left click opens items in the current tab |

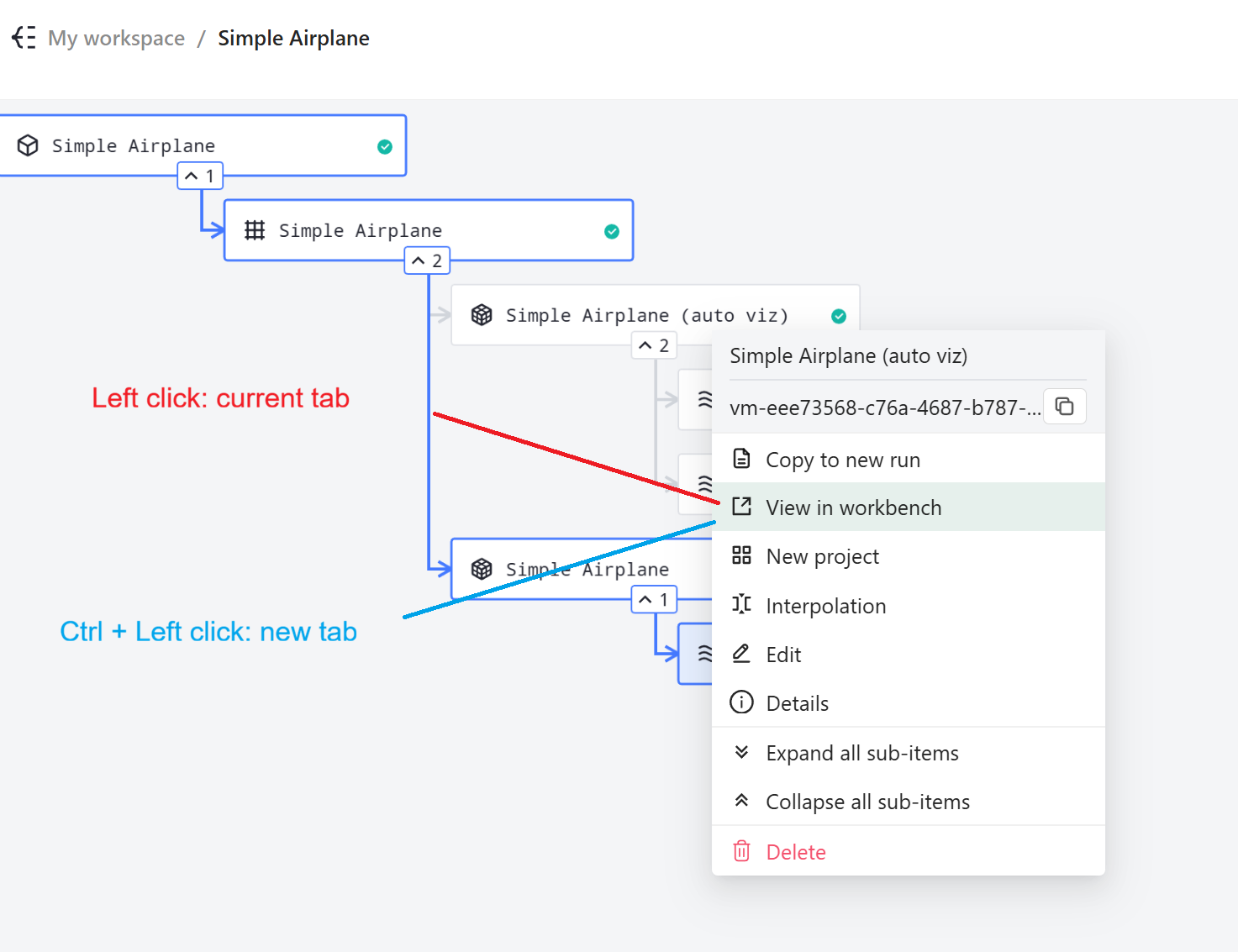

Project tree context menu showing the difference between standard left click (opens in current tab) and Ctrl/Cmd + Left click (opens in new tab).
# Tree Selection Shortcuts
Shortcuts for selecting items in the project tree.
| Action | Windows / Linux | macOS | Description |
|---|---|---|---|
| Box selection | Shift + Drag (rectangle) | Shift + Drag (rectangle) | Select multiple tree items by dragging a selection box |
| Continue to add/remove selections | Ctrl + Shift + Drag (rectangle) | Cmd + Shift + Drag (rectangle) | Modify existing selection by dragging a box |
